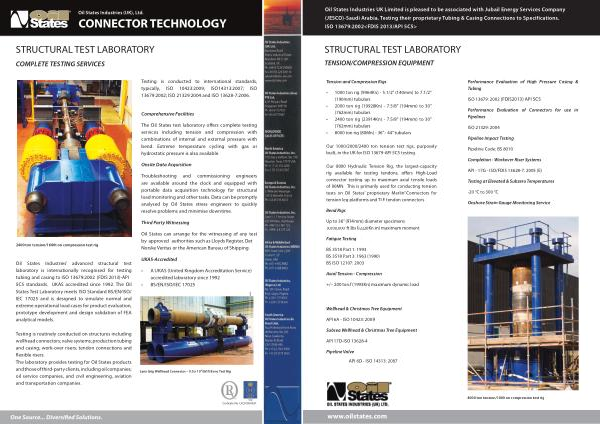

Oil States Industries UK Limited is pleased to be associated with Jubail Energy Services Company ( JESCO ) -Saudi Arabia . Testing their proprietary Tubing & Casing Connections to Specifications . ISO 13679:2002 < FDIS 2013 / API 5C5 >
STRUCTURAL TEST LABORATORY
TENSION / COMPRESSION EQUIPMENT
.
.
.
. ad 12 3LH
s . com
CES : E
ca
10 2307
rasia ceans
0 89 35 0 14 82
712 d Road
5009 54
er Road Nigeria . 18363 18364
ca
Tension and Compression Rigs
• 1000 ton rig ( 9964Kn ) - 5.1 / 2 ” ( 140mm ) to 7.1 / 2 ” ( 190mm ) tubulars
• 2000 ton rig ( 19928Kn ) - 7.5 / 8 ” ( 194mm ) to 30 ” ( 762mm ) tubulars
• 2400 ton rig ( 23914Kn ) - 7.5 / 8 ” ( 194mm ) to 30 ” ( 762mm ) tubulars
• 8000 ton rig ( 80Mn ) - 36 ” - 44 ” tubulars
Our 1000 / 2000 / 2400 ton tension test rigs , purposely built , in the UK for ISO 13679-API 5C5 testing .
Our 8000 Hydraulic Tension Rig , the largest-capacity
connector testing up to maximum axial tensile loads of 80MN . This is primarily used for conducting tension tests on Oil States ’ proprietary Merlin ® Connectors for tension leg platforms and TLE tendon connectors .
Bend Rigs
Up to 306 ” ( 914 762mm ) diameter specimens 2,688,000 9,000,000 ft . lbs (
12220 3650Kn . m ) maximum moment
Fatigue Testing
BS 3518 Part 1 : 1993 BS 3518 Part 3 : 1963 ( 1990 ) BS ISO 12107 : 2003
Axial Tension - Compression
+/– 200 ton . f ( 1993Kn ) maximum dynamic load Bending Fatigue +/– 1.0 x 10.6ft . lb ( 1350Kn . m ) cyclic bending
Wellhead & Christmas Tree Equipment API 6A - ISO 10423 : 20039 Subsea Wellhead & Christmas Tree Equipment API 17D-ISO 13628-4
05 ros 90 asil 63 4300
Pipeline Valve API 6D - ISO 14313 : 2007
Performance Evaluation of High Pressure Casing & Tubing
ISO 13679 : 2002 ( FDIS2011E FDIS2013 3 ) API 5C5
Performance Evaluation of Connectors for use in Pipelines
ISO 21329 : 2004 Pipeline Impact Testing Pipeline Code : BS 8010 Completion - Workover Riser Systems API - 17G - ISO / FDIS 13628-7 : 2005 ( E ) Testing at Elevated & Subzero Temperatures -20 ° C to 300 ° C Onshore Strain Gauge Monitoring Service
8000 ton tension / 1000 on compression test rig www . oilstates . com
