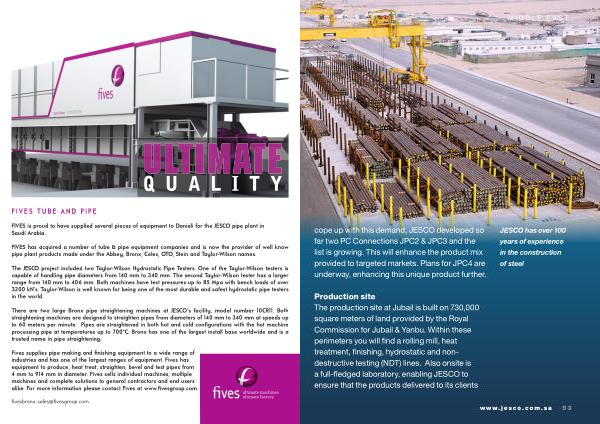

FIVES TUBE AND PIPE

FIVES is proud to have supplied several pieces of equipment to Danieli for the JESCO pipe plant in Saudi Arabia .

FIVES has acquired a number of tube & pipe equipment companies and is now the provider of well know pipe plant products made under the Abbey , Bronx , Celes , OTO , Stein and Taylor-Wilson names .

The JESCO project included two Taylor-Wilson Hydrostatic Pipe Testers . One of the Taylor-Wilson testers is capable of handling pipe diameters from 140 mm to 340 mm . The second Taylor-Wilson tester has a larger range from 140 mm to 406 mm . Both machines have test pressures up to 85 Mpa with bench loads of over 3200 kN ’ s . Taylor-Wilson is well known for being one of the most durable and safest hydrostatic pipe testers in the world .

There are two large Bronx pipe straightening machines at JESCO ’ s facility , model number 10CR11 . Both straightening machines are designed to straighten pipes from diameters of 140 mm to 340 mm at speeds up to 60 meters per minute . Pipes are straightened in both hot and cold configurations with the hot machine processing pipe at temperatures up to 700 ° C . Bronx has one of the largest install base worldwide and is a trusted name in pipe straightening .

Fives supplies pipe making and finishing equipment to a wide range of industries and has one of the largest ranges of equipment . Fives has equipment to produce , heat treat , straighten , bevel and test pipes from 4 mm to 914 mm in diameter . Fives sells individual machines , multiple machines and complete solutions to general contractors and end users alike . For more information please contact Fives at www . fivesgroup . com

fivesbronx-sales @ fivesgroup . com
